ACCESSORIES ADAPTORS AMADA RANGE AMADA RANGE NEW CLAMPING SYSTEM ACCESSORIES

ES CLAMP PN
36 Patented and pneumatic intermediate es clamp pn model for promecam style tooling.

30

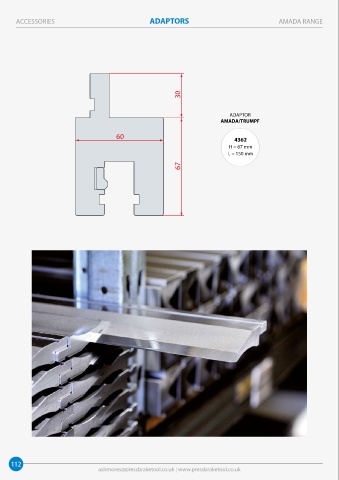

60 ADAPTOR
AMADA/TRUMPF

60 4362

H = 67 mm
100 L = 150 mm

67

SPECIFICS CODE HEIGHT ( mm )

- Easy to install 4369 110

- The system does not require any modification to the 4370 150
press brake or tooling
- Front insertion 4371 200
- Fall-protection system 4372 250
- Self-alignment of top tools 4373 300
- Pneumatic clamping
- Possibility to remove the clamps easily 4374 400

- Available in different heights 4375 500
- Rear tool holder with manual closure included

OPTIONAL
4376 Rear tool holder with pneumatic closure
4377 Pneumatic Kit

112 113
