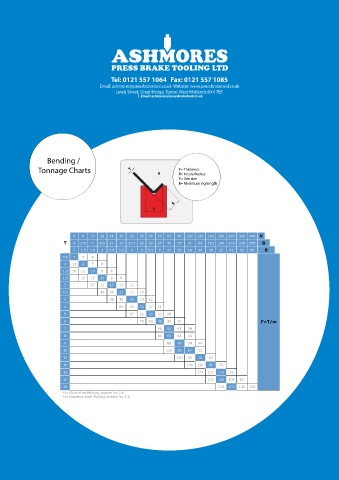

Bending /
Tonnage Charts T= Thickness
R= Inside Radius
V= Vee size
B= Minimum leg length

6 8 10 12 16 20 25 32 40 50 63 80 100 125 160 200 250 320 400 V
T 4 5.5 7 8.5 11 14 17.5 22 28 35 45 55 71 89 113 140 175 226 350 B
1 1.3 1.6 2 2.6 3.3 4 5 6.5 8 10 13 16 20 26 22 41 53 83 R
0.8 7 5 4
1 11 8 7 6
1.2 16 12 10 8 6
1.5 17 15 13 9 8
2 27 22 17 13 11
2.5 35 26 21 17 13
3 38 30 24 19 15
4 54 42 34 27 21
5 67 52 42 33 26
6 75 60 48 38 30 F=T/m
7 66 52 41 34
8 86 69 53 43
9 86 68 54 44
10 105 85 67 53
12 120 95 76 60
15 150 120 95 75
18 174 137 110 88
20 170 135 108 85
25 210 170 130 105
For Aluminium Multiply answer by 0.6
For Stainless steel Multiply answer by 1.6
