P. 87

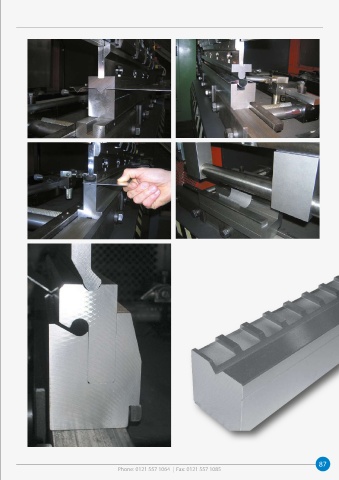

ACTIVE BEND / ACTIVE BEND PREMIUM
MODEL Max Load T/m
AB200 100
PREMIUM AB300 130
PREMIUM
AB450 150
Active Bend and Active Bend Premium dies allow you to
bend different sheet metal thickness as reported on the AB600 200
chart below. Values are expressed in millimeters (mm). AB1000 220
Bending range ( thickness – mm )
Material type SB200 SB300 SB450 SB600 SB1000
Mild Steel 0,5 – 2,3 1,0 – 3,2 1,2 – 4,5 1,2 – 6,0 2,3 – 10,0
Stainless Steel 0,5 – 2,0 1,0 – 3,0 1,2 – 4,0 1,2 – 5,0 2,0 – 6,0
Aluminium 0,5 – 2,0 1,0 – 3,0 2,3 – 4,5 2,5 – 6,0 2,5 – 10,0
ACTIVE BEND DIE HOLDERS
14
POLYURETHAN
60
60 13,1 L=1000
13,1 60 6,6 6,5
15
6,6 6,5 51,5 61,5
20,5
20,5 60
30 20
20 25
17
60
4301 4310 3173
60 60
12 12
86 L=835 87
[email protected] | www.pressbraketool.co.uk Phone: 0121 557 1064 | Fax: 0121 557 1085
40 40
20 20
6,5 6,5 5,7 7
13 12,7
48
13,1
6,6 6,5 L=1000
12
20,5
30
55
20
5,7 7
12,7 60
