P. 45

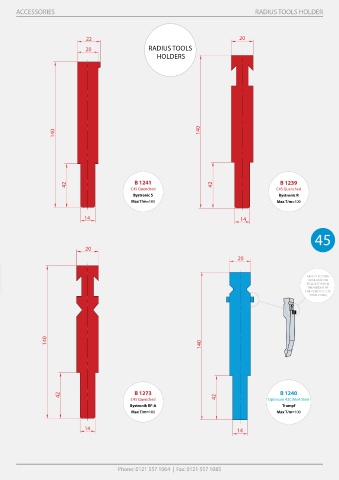

ACTIVE BEND ACCESSORIES ACCESSORIES RADIUS TOOLS HOLDER
22 20
20 RADIUS TOOLS
HOLDERS
140 140
42 B 1241 42 B 1239
C45 Quenched C45 Quenched
Active Bend provides advantages that the Bystronic S Bystronic R
NEW standard dies can't perform: Max T/m=100 Max T/m=100
TECHNOLOGY FOR - 40° acute bending
HIGH QUALITY - narrow minimum edges 14 14
RESULTS - no die marking ( between sectioned pieces )
44 - no strain with perforated sheets 45
20
20
NO DIE MARK BENDING ▲ 40° ACUTE BENDING safety button
available on
▲
request when
the weight of
the punch is less
than 12.5kg
TRUMPF/
BYSTRONIC
140
MODEL LENGTH (mm) 140
50
100
AB200
200
15, 20, 25, 30
50
100
AB300
200
15, 20, 25, 30 42 B 1273 B 1240
50 C45 Quenched 42 Optimum 42CrMo4 Steel
AB600 100 Bystronik RF-A Trumpf
200 Max T/m=100 Max T/m=100
3300 3301 3302
(AB-200) (AB-300) (AB-600) 14 14
[email protected] | www.pressbraketool.co.uk Phone: 0121 557 1064 | Fax: 0121 557 1085
